Delrin® AF DE588 is a 20% PTFE filled homopolymer acetal that is fully tested and certified for use by the United States Navy. The resin is manufactured by DuPont and is used extensively in a variety of applications primarily on submarines.

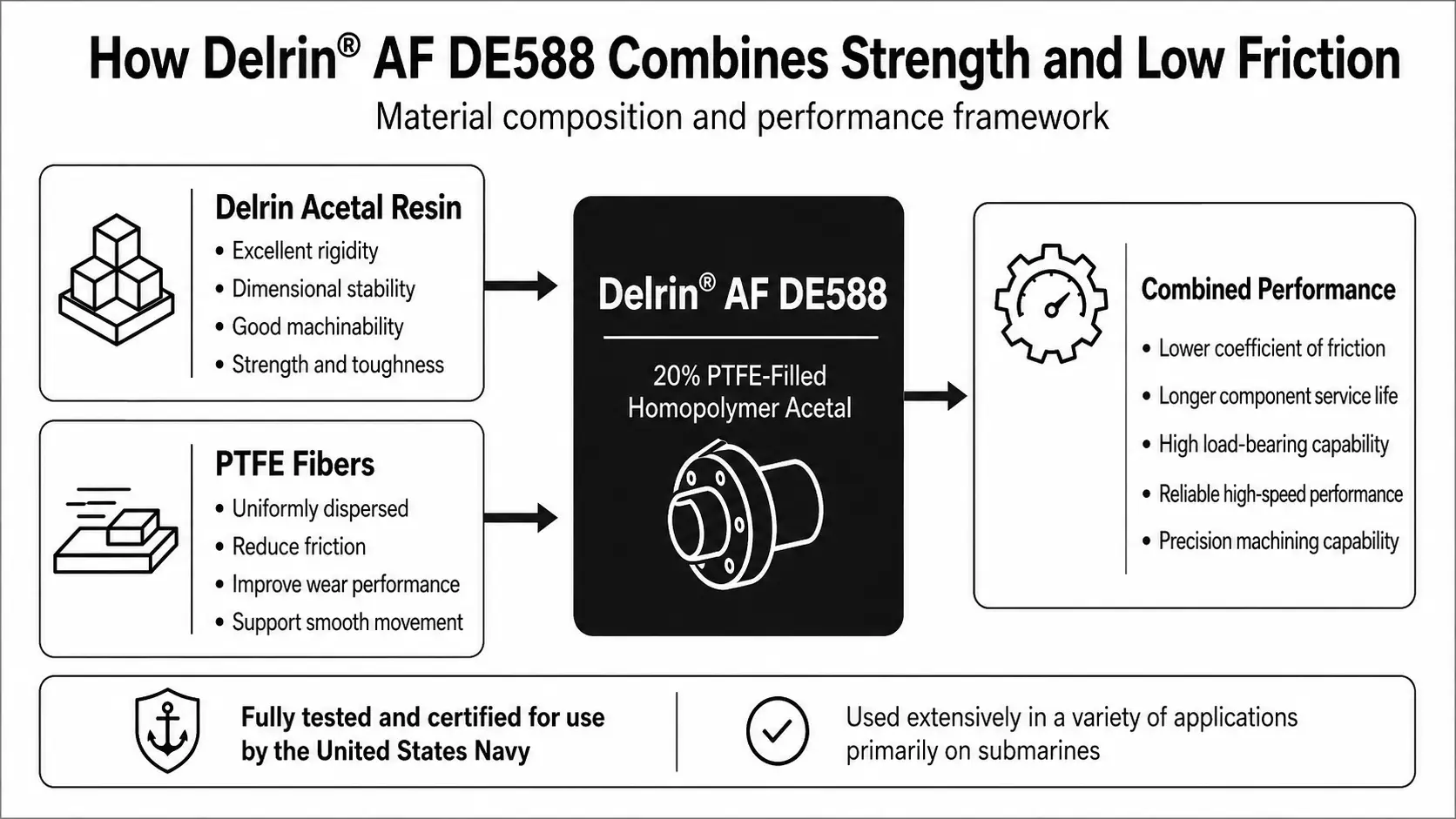

This advanced acetal material uses a combination of PTFE fibers uniformly dispersed in Delrin acetal resin. The combination results in improved wear characteristics along with strength, toughness, dimensional stability and machinability. The profile also yields a material with superior load bearing capabilities, especially when operating at high speeds.

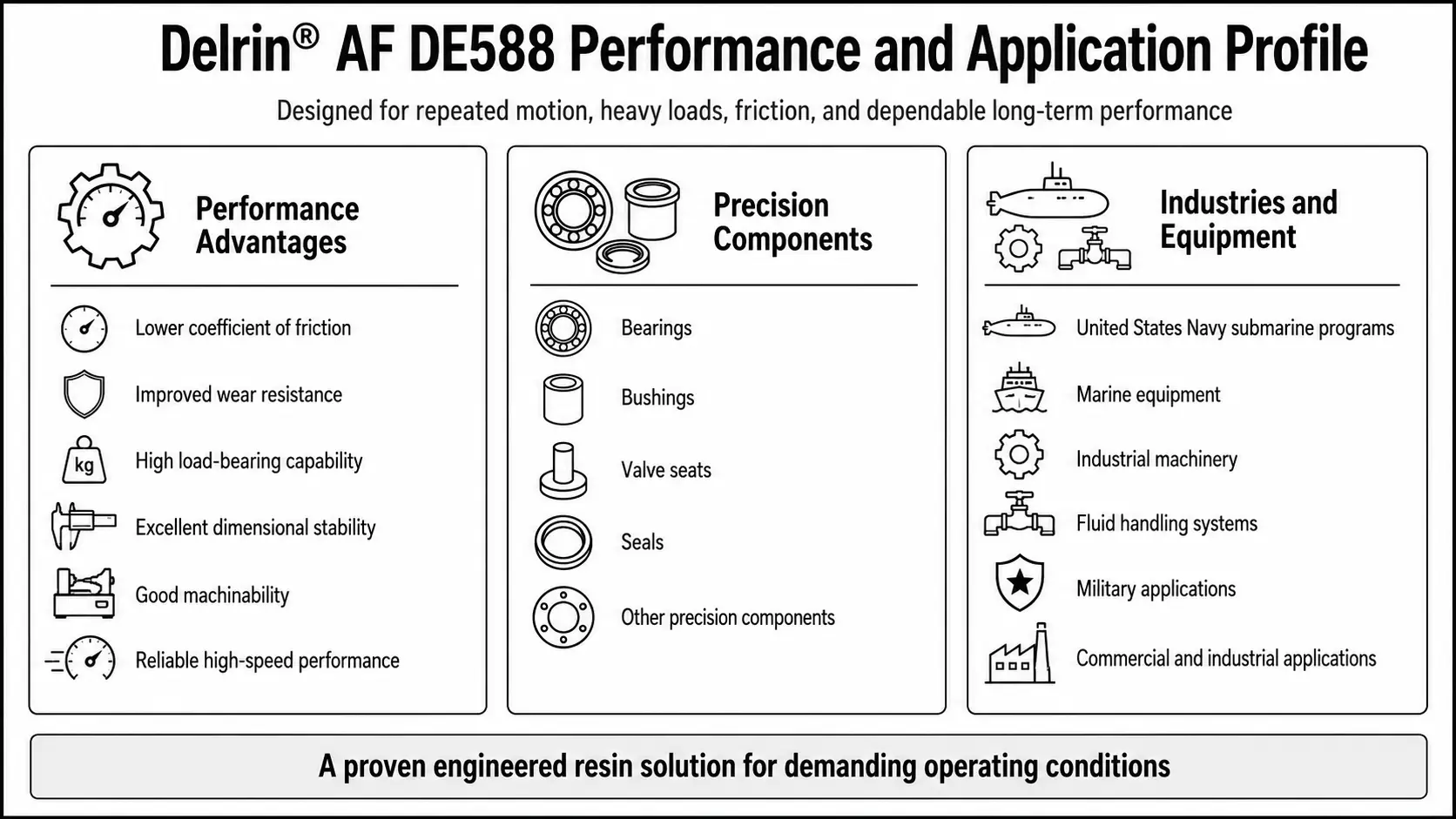

Applications Include:

• Valve seats
• Bearings
• Bushings
• Thrust washers
• Seals
• Gaskets
• Submarine components

Do you need Fabrication or Machining for Delrin AF DE588?

Request Fabrication/Machining Services

At a Glance

Generic Name
Polyoxymethylene, Polyacetal

Available In
Sheet, Rod, Tubular Bars

Brands
Delrin®

Start Your Quote

Send us a message:

*Required Fields

Gallery

Technical Information

Stock Products Properties Applications Advantages

Stock Products

Sheets:
Thickness: 3/8” to 6”
Width: 12”, 18”, 24”
Length: 4’

Rods:
Diameter: 3/8” to 10”
Length: 4’ | 8’ | 10’

Tubular Bars
OD: 3” to 6”, 10”, 12”
Wall Thickness ≥ 1/2”
Length: 4’ | 8’

Give us your cut-to-size dimensions. We will precision-cut these plastics to your exact size. Additional sizes and colors available upon request.

Properties

Physical Properties	Units	ASTM	Results
Density	g/cm3	D792-13	1.54
Water Absorption, 24 hrs	%	D570-98	0.2

Mechanical Properties	Units	ASTM	Results
Tensile Strength @ yield	psi	D638	6100
Tensile Modulus	psi	D638	320
Tensile Elongation @Break	%	D638	20
Flexural Strength	psi	D790
Flexural Modulus	psi	D790
Compressive Strength	psi	D695	11000
Compressive Modulus	psi	D695	35000
Hardness, Rockwell R	R Scale	D785-08	115
IZOD Impact Strength Notched	ft-lb/in	D256

Thermal Properties	Units	Results
Coeffcient of Linear Thermal Expansion	(x 10^-5 in./in./°F)	5.0
Heat Deflection Temp at 264 psi	°F	224
Melting Temperature	°F	347
Max Operating Temp.	°F	180
Thermal Conductivity	BTU-in/ft²-hr-°F	n/a
Flammability Rating		HB

Electrical Properties	Units	ASTM	Results
Dielectric Strength. 1/8″ th.	V/mil	D149
Dissipation [email protected] MHz	ohm-cm	D257

NOTE: The property values presented above are typical values intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. Contact us for manufacturers’ complete material property datasheets. All values at 73°F (23°C) unless otherwise noted.

Applications

Bushings
Bearings
Seals
Gaskets
Valve seats

Advantages

High hardness and stiffness
Very high mechanical properties
Excellent creep resistance and dimensional stability
Excellent dielectrical properties
Low coefficient of friction
Compliance with the requirements of ASTM D6100-14 S-POM0143
Compliance with NAVSEA 5959311 rev C and NAVSEA 803-4384678 rev B and C
Complete traceability to resin lot and batch
Small minimum order requirements
