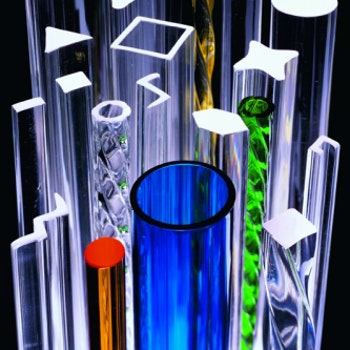

Clear cast acrylic rods come in diameters ranging from .250 to 8.0 inches. Tight tolerances throughout the manufacturing process assures you of getting the highest quality rods in the industry. Our standard material is a clear ultraviolet transmitting acrylic, but colored rods are also available. Small stock diameter (.250″ to 2.0″) rods come in standard lengths of 8 feet with larger diameters being shorter.
Cast acrylic is highly regarded for its optical clarity and outstanding light transmission properties. Cast acrylic rod is unaffected by sunlight or fluorescent lights, resists aging and maintains stability under a wide range of conditions. This material weighs half as much as glass and has up to seventeen times greater impact resistance than glass.
Contact us today for your fabrication and machining needs!
Request Fabrication/Machining ServicesGeneric Name
Acrylic
Available In
Rod
Certifications
ITAR Registered
Start Your Quote
Send us a message:
*Required Fields
| Type | Size | Length | Color |
|---|---|---|---|
| Rod | .250″ to 8.0″ | Up to 8′ | Clear and colors |
Give us your cut-to-size dimensions. We will precision-cut these plastics to your exact size. Additional sizes and colors available upon request.
| Mechanical Properties | Units | ASTM | Results |
|---|---|---|---|
| Specific Graviity | ASTM D-792 | 1.19 | |
| Tensile Strength | ASTM D-638 | 11,250 | |
| Tensile Strength Elongation | ASTM D-638 | 6.4 | |
| Compressive Strength | ASTM D-695 | 18,000 | |
| IZOD Impact Strength | ASTM D-256 | .0375 | |
| Flex Modulus | ASTM D-790 | 475,000 |
| Thermal Properties | Units | ASTM | Results |
|---|---|---|---|
| Coeffcient of Linear Thermal Expansion | ASTM D-696 | 0.000042 | |
| Heat Distortion at 264 psi | 180 |
| Optical Properties | Units | ASTM | Results |
|---|---|---|---|
| UV Transmission @ 320nm | ASTM D1003 | >80 | |
| Haze | ASTM D1003 | <0.5 |
