absABS is an economical engineering plastic that is easy to machine and fabricate. ABS is an ideal material for structural applications when impact resistance, strength, and stiffness are required. ABS thermoplastic fire-rated sheet can be used as a base material for making of glare shields and side panel backing for airplanes.

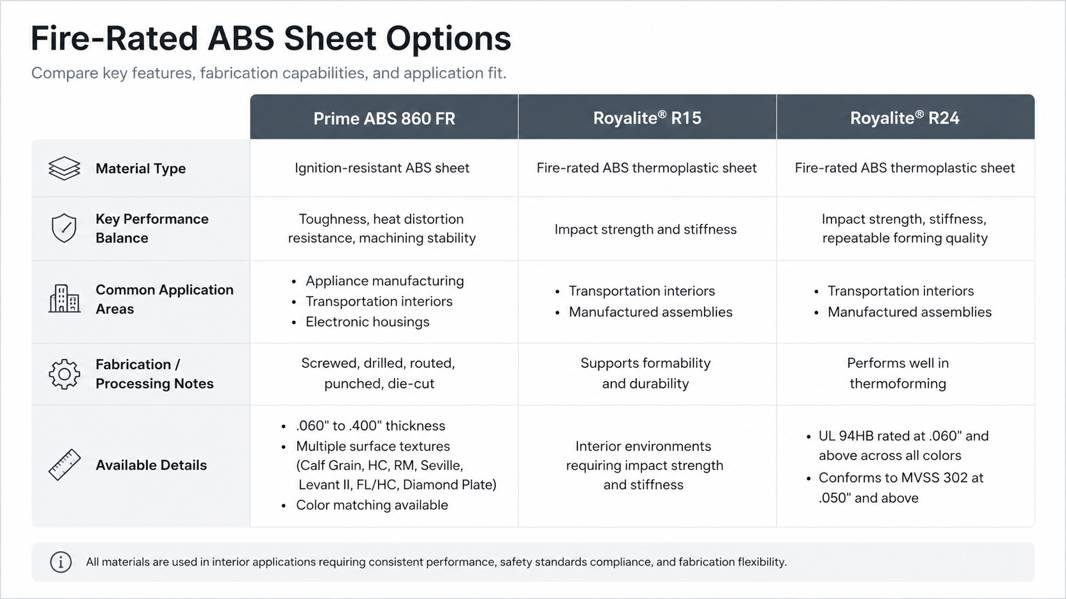

Prime ABS 860 FR is an ignition resistant ABS with excellent process stability, high practical toughness, and heat distortion temperature. Prime ABS 860FR may be used for interior applications such as appliance parts, transportation, and electronics. This material can be screwed, drilled, routed, punched and die-cut with conventional tooling. Prime ABS 860FR can be color matched to meet your specific requirements. Prime ABS 860FR is available in thicknesses from .060 - .400. Textures include Calf Grain, HC, RM, Seville, Levant Il, FL/HC, and Diamond Plate. *Subject to minimums*

Prime ABS 860FR

Royalite® R15 & R24 is a fire rated abs thermoplastic sheet product. R-24 is UL listed 94HB@ .060 and above in all colors. In addition, R24 is in conformance with MVSS 302 at .050 and above. R24 combines high impact strength and stiffness with excellent formability.

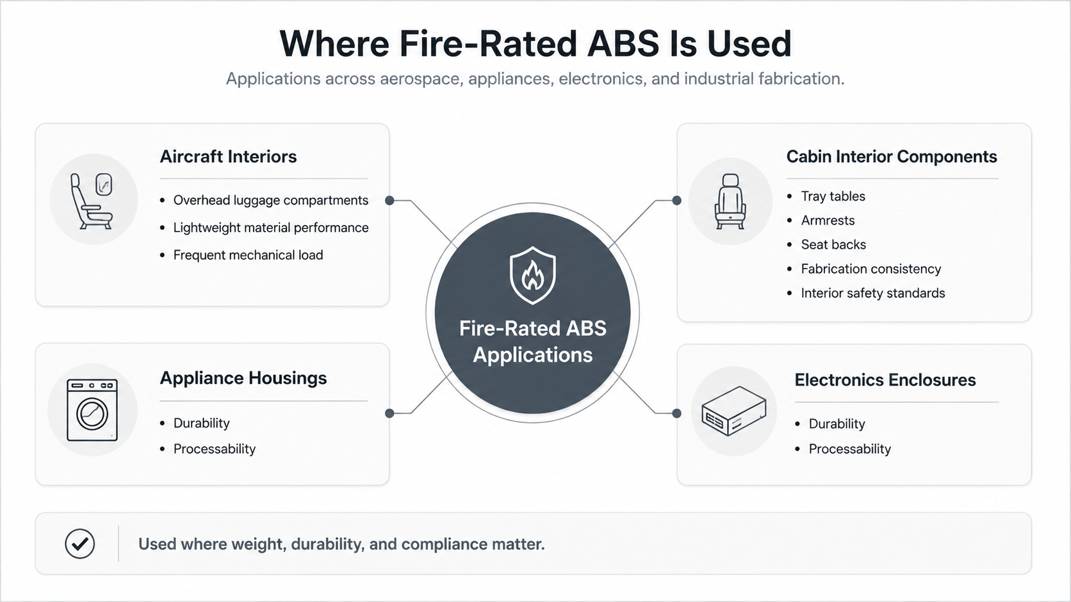

What types of applications are most commonly used with Fire Retardant ABS?

  • Overhead luggage storage compartment: These compartments require durable materials because they are subjected to quite a bit of strain in normal use. Yet, they also need to be lightweight, because their presence does not add to the aerodynamics or operation of the aircraft. Plastics like Acrylonitrile Butadiene Styrene (ABS) or Kydex are excellent materials for these bins.

  • Cabin Interiors: High impact, fire-rated thermoplastic materials, and Royalite® thermoplastic materials, are engineered to have the durability, cleaning chemical resistance, and fire resistance required for aircraft interiors. These materials are thermoformed and used as tray tables, armrests, and seat backs.

Brand Names

  • Prime ABS® 860
  • Ensidur® FR
  • Royalite® R15 and R24

Emco Industrial Plastics doesn’t claim to represent all of the manufacturers or trade name products listed. This list is intended as a guide of typical materials available for purchase from Emco Industrial Plastics, Inc. For additional information, contact an Emco Industrial Plastics representative at mailbox@emcoplastics.com.

Do you need Fabrication or Machining for ABS Flame Retardant?

Contact us today for your fabrication and machining needs!

Request Fabrication/Machining Services
At a Glance

Generic Name
Acrylonitrile Butadiene Styrene, Flame Retardant

Available In
Sheet, Film, Rod

Certifications
FDA Compliant, ITAR Registered

Start Your Quote

Send us a message:

*Required Fields

Gallery

Technical Information

Stock Products Properties Applications Advantages Grades Downloads

Stock Products

TypeSizeLengthColor
Sheet 1/32″ – 1/4″ TH Standard 48″ x 96″; CTS White, Black
Film Custom Custom Custom

Give us your cut-to-size dimensions. We will precision-cut these plastics to your exact size. Additional sizes and colors available upon request.

Properties

Physical PropertiesUnitsASTMResults
Specific Gravity g/cc D792 1.18
Melt Flow, 220°C/10kg g/10min D-1238 12
Tensile Strength psi D-638 5.973
Flexural Strength psi D-790 7.964
Flexural Modulus psi D-790 298,863
Notched Izod @ 73°F fl-lb/in D-256 3.75
Rockwell Hardness R Scale D-785 98
Mold Shrinkage % D-955 0.3-0.6
HDT @ 264 psi, Un-annealed ºF D-648 181
Vicat Softening Point ºF ISO R 306 199

Complies with UL 94-VO at thickness’ greater than .059”
Complies with UL 94-5VB at thickness’ greater than .098”

Applications

  • Machined prototypes
  • Structural components
  • Support blocks
  • Housings
  • Covers
  • Instrument panel housings
  • Class dividers
  • Bulkhead laminates
  • Galley and lavatory components
  • Bull noses, gap covers, moldings
  • Sidewall and kick panels
  • Window reveals
  • Seat parts, backs, arm rests
  • Tray tables
  • Passenger Service Units (PSUs)
  • Light housings
  • Video monitor shrouds
  • Life vest shrouds
  • Air ducts

Advantages

  • Excellent impact resistance
  • Good machinability
  • Excellent aesthetic qualities
  • Easy to paint and glue
  • Good strength and stiffness
  • Low cost

Grades

  • Machine Grade. FDA compliant (natural and black)
  • Machine grade. non-FDA (natural and black)
  • Flame retardant grade (natural and black)
  • Static Dissipative (Black. Natural (beige). Semitransparent)
